Upgraded illumination system to LED!
Newly designed wide-field optics, high-tech illumination for ease of use. Every specification and function perfect for daily eye exams. The new generation of Slit Lamp.
New Premium Features
LED illumination
Upgraded illumination system to LED as similar wavelength of Halogen Lamp.

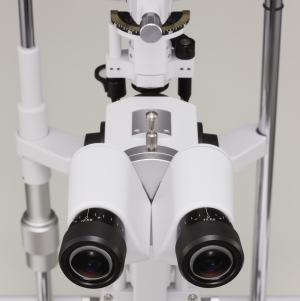

Convergence Optics
12 degree convergence optics for easy image fusion. Newly designed optical alignment affording wider visibility in the eyepiece.

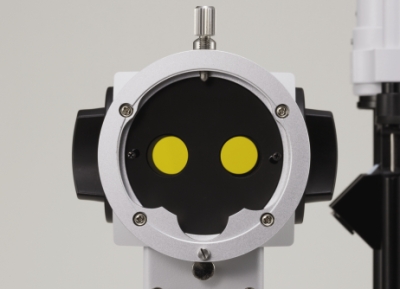

Built-In Yellow Filter
Internal yellow filter may be conveniently switched in/out quickly for fluorescein techniques.

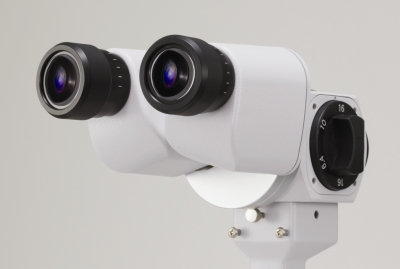

Wide Field & High Eye point Eyepiece Design
With our newly created wide field optics, we have successfully increased the actual field of view. Wider fields of view as 37,23, 14.6, 9.5 & 5.9mm are achieved. With the new high-point eyepiece feature, eye exams are performed in a more natural, comfortable manner.
Centralized Control
Joystick with camera shutter control button, brightness control knob and locking control knob, routinely used functions all conveniently Localized in the joystick area for efficient, confident slit lamp control.
Expanded Slit Width & Height
A wider slit width & longer slit height capability are attractive features when combined with our new wide field optics.
Slit width: 0-15 mm
Slit height: 0.5-15 mm
Diaphragm Sizes: 0.2 , 1, 3 , 5, 8, 15 mm
Background Illumination/Diffuser
Flexible background illumination and a diffuser that can be use easily deployed, e.g. when shooting.
Improved Working Distance
Forward and back slit lamp movement is increase up to 100 mm allowing retinal exams with diagnostic and therapeutic fundus lenses.
SL-203
The acclaimed SL-203 is now upgraded
(a stereotype eye lens tube).
Equipped with the same LED illumination system
as the SL-500.
The main unit can now slide up to 100 mm,
which makes the device brighter and more
user-friendly.
Customizable in various ways to meet your needs,
e.g.allowing digital camera to be added to the basic function.
SL-202
The simple and easily operable SL-102 also with upgraded illumination system to LED and expanded slide travel of the main unit.
A basic model for all users,
allowing you to observe the eye quickly and correctly,
even when multiple examinations are required.
| MICROSCOPE | Type | Binoculer, Galilean-type, 5step drums rotation | |
|---|---|---|---|
| Conversion | 12 degrees | ||
| Eyepieces | 12.5x High-Eyepoint | ||
| Filter | Yellow filter | ||
| Total Magnification | 6.4x, 10x, 16x, 25x, 40x | ||
| Field of View | φ37, φ23, φ14.6, φ9.5, φ5.9mm | ||
| Pupillary Distance | 52mm to 80mm | ||
| Diopter Adjustment Range | -7D to +7D | ||
| Base | Side Shift | 100mm | |
| Depth Shift | 100mm | ||
| Height Shift | 29mm | ||
| Chin-rest | Height Shift | 80mm | |
| Fixation Target | LED | ||
| ILLUMINATION SYSTEM |
Slit Width | 0 to 15mm, continuous | |
| Slit Height | 0.5 to 15mm, continuous | ||
| Diaphragm Sizes | φ0.2 , φ1, φ3 , φ5, φ8, φ15mm | ||
| Rotation | 0 to 180 degrees | ||
| Filters | Cobalt blue, 50%ND, Heat absorption, Green(Red-free) | ||
| Light Source | LED | ||
| Power Consumption | 35-45VA | ||
| Size | Weight | 17kg | |
| Dimensions | 550mm（W） × 445mm（D） × 800mm（H） | ||
| Standard Accessories | Operation Manual,Power Cable,Dust Cover,Chin-rest Paper,Test Bar,Light Guide,Diffuser,Base Plate | ||
| Optional Accessories | Table Top,Accessory Box | ||
| SL-203 | SL-102 | ||
| MICROSCOPE | Type | Galilean-type | Greenough-type |
| Magnification Changing Method | 5step drums rotation | 2-position lever | |
| Eyepieces | 15x | 10x, 16x (16x eyepiece is optionally available in some regions.) |
|
| Total Magnification | 6x, 10x, 16x, 25x, 40x | 10x, 16x, 25.6x | |
| Field of View | 6～37mm | 10～18mm | |
| Pupillary Distance | 50～80mm | 55～80mm | |
| Diopter Adjustment Range | -7D to +7D | -8D to +8D | |
| Base | Side Shift | 100mm | |
| Depth Shift | 100mm | ||
| Height Shift | 29mm | ||
| Chin-rest | Height Shift | 80mm | |
| Fixation Target | LED | ||
| ILLUMINATION SYSTEM |
Slit Width | 0 to 15mm, continuous | |
| Slit Height | 0 to 15mm, continuous | ||
| Diaphragm Sizes | φ0.2 , φ1, φ3 , φ5, φ8, φ15mm | ||
| Rotation | 0 to 180 degrees | ||
| Filters | Cobalt blue, 50%ND, Heat absorption, Green(Red-Free) | ||
| Light Source | LED | ||
| Power Consumption | 24-30VA | ||
| Size | Weight | 16.5kg | 16kg |
| Dimensions | 550mm（W） × 410mm（D） × 770mm（H） | ||
| Standard Accessories | Operation Manual,Power Cable,Dust Cover,Chin-rest Paper,Halogen Lamp,Test Bar,Base Plate | ||
| Optional Accessories | Table Top,Accessory Box | ||
