YAG LASER ADVANTAGES
- short treatment times
- reduced risk of IOL pitting
- greater patient comfort
SLT LASER ADVANTAGES
- laser light stimulates the body’s own healing response to lower eye pressure
- effective as primary, adjunctive or repeat therapy
- safe, office-based procedure
- reimbursed by most insurance policies

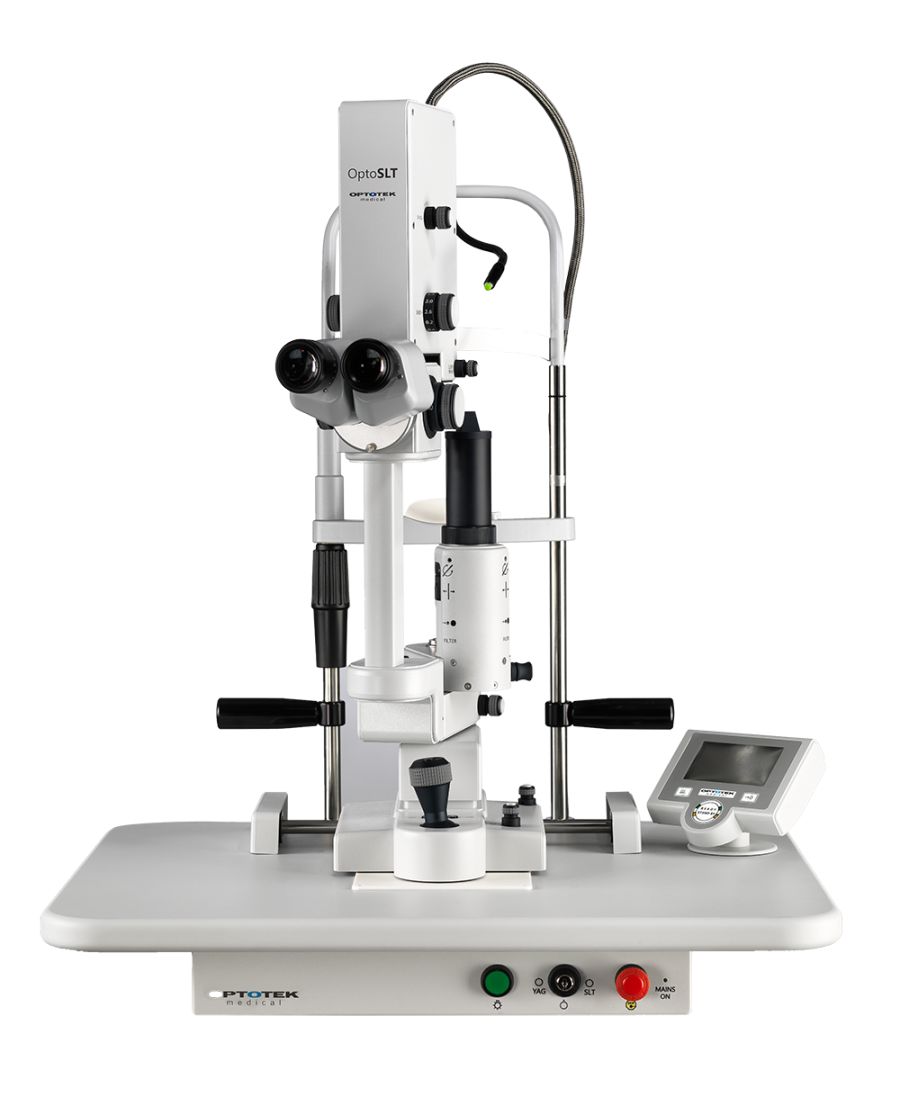

OPTOYAG&SLT IS A COMBINED UNIT WHICH INCLUDES:
- Q-switched Nd:YAG laser (1064 nm)
- frequency doubled Q-switched Nd:YAG laser (532 nm)
Clinical references:
Other References:
Achieving capsulotomy, iridotomy with novel Nd:YAG laser system
Key features
PPS™ – PULSE TO PULSE STABILITY
Optotek has spent extra time and effort to ensure highest reliability and safety of the system. The OptoYag&SLT M incorporates a PPS™ technology for delivering stable output energy far exceeding current industry standards. Enhanced accuracy and stability of energy provide the highest degree of safety and assure effective and efficient eye treatments.
E-SLITLIGHT™
HIGH POWER LED ILLUMINATION SYSTEM
Tired of replacing slit lamp bulb? Want to have a brighter light? The e-SlitLight™ LED slit lamp offers thousands of hours of bright white light originating from the solid state LED light source. The LED illumination enhances color, detail and contrast and therefore significantly improves imaging. Additionally, its minimal heat emission makes the treatment comfortable even for dry eye patients.
FES™ – FINE ENERGY SETTING
FOR UNMATCHED PRECISION
Advanced technical solutions and sophisticated electronics incorporated into the OptoSLT M allow for a precise adjustment of energy in order to match the specific needs of the therapy or the patient. The fine energy setting buttons are convenientl located just next to the joystick, offering the physician easy and accurate adaptation of energy to the patient’s eye response.
PPS™ – PULSE TO PULSE STABILITY
FOR ADVANCED SAFETY
Optotek has spent extra time and effort to ensure highest reliability and safety of the system. The OptoSLT M incorporates a PPS™ technology for delivering stable output energy far exceeding current industry standards. Enhanced accuracy and stability of energy provide the highest degree of safety and assure effective and efficient eye treatments.
TREATMENT AT 3 HZ
FOR HIGHER PERFORMANCE
The OptoYag&SLT M with newly designed laser cavity and optimized system configuration features repetition rate at 3 Hz. Faster treatment shifts physician’s productivity and patient’s comfort to a completely new level.
EASY-TO-MOVE SYSTEM
Convenient portable design allows ophthalmologists to change location with ease. Having electronics box underneath the table, the system can be moved freely to another worktop and therefore instantly ready for use.
MECHANICAL PRECISION AND OPTICAL QUALITY
OptoYag&SLT M is made with special care. High quality optical and mechanical components are made in-house or in close cooperation with suppliers within the EU.
YAG Mode
| Laser Source | Q-switched Nd:YAG |
| Wavelength | 1064 nm |
| Energy | 0,5 to 10 mJ per pulse in 30 steps |
| Spot Size | < 10 μm |
| Cone Angle | 16° |
| Offset | Selectable: 150μm anterior;,0; 150, 300 μm posterior |
| Pulse Rate | Up to 3 Hz |
| Burst Mode | 1, 2 and 3 pulses |
| Pulse Duration | 4 ns (typical) |
| Aiming Beam | Red dual diode; 650 nm;,continuously adjustable intensity(635, 670 nm optionally) |
| Laser Trigger | Joystick (footswitch optionally) |
| Cooling System | Air convection |
SLT Mode
| Laser Source | Q switched, frequency doubled Nd:YAG |
| Wavelength | 532 nm |
| Energy | 0,2 to 2,6 mJ per pulse in 33 steps |
| Spot Size | 400 μm |
| Cone Angle | < 3° |
| Offset | Not applicable |
| Pulse Rate | Up to 3 Hz |
| Burst Mode | Single pulse |
| Pulse Duration | 4 ns (typical) |
| Aiming Beam | Red diode; 650 nm; continuously,adjustable intensity(635, 670 nm optionally) |
| Laser Trigger | Joystick (footswitch optionally) |
| Cooling System | Air convection |
| Type | e-SlitLight™ |
| Illumination Source | White LED |
| Magnification | 10x, 16x, 25x (6x, 10x, 16x, 25x, 40x optionally) |
| Type | Central mounted |
| Dimensions | 600 x 480 mm |
| YAG Laser Dimensions | 125 x 257 x 68 mm |
| SLT Laser Dimensions | 240 x 150 x 60 mm |
| Total System Height | 695 – 730 mm |
| Total Net Weight | 23 kg |
| Power Supply | 100 – 240 V, 50 – 60 Hz, 1,1 A MAX |
| Optional Accessories | Motorized lifting mechanism, Footswitch, Elbow support, Beam splitter with co-observation tube, Warning light, Magnification changer (5x) |
Key features
For the highest standards, all laser components are manufactured in Optotek Did you know that most companies that manufacture YAG / SLT cavity give the production of them to third-party manufacturers? We at Optotek have the technology, technical expertise and experts to manufacture YAG / SLT laser technology solely by ourself and with that we are setting higher standards to our products.
