ADVANTAGES:
- short treatment times
- reduced risk of IOL pitting
- greater patient comfort
OptoYag is a Photodisruptor for Capsulotomy and Iridotomy treatments. It is a Q-switched Nd:YAG laser emitting short pulses at the wavelength of 1064 nm. The laser is integrated into the e-SlitLight. The OptoYag emits pulses at levels from 0.5 to 10 mJ. A dual red diode aiming beam with continuous power adjustment allows precise focusing of the YAG laser.
Clinical references:
Nd:Yag Capsulotomy for Treating Posterior Capsule Opacification
Key features
PPS™ – PULSE TO PULSE STABILITY
Optotek has spent extra time and effort to ensure highest reliability and safety of the system. The OptoYAG M incorporates a PPS™ technology for delivering stable output energy far exceeding current industry standards. Enhanced accuracy and stability of energy provide the highest degree of safety and assure effective and efficient eye treatments.

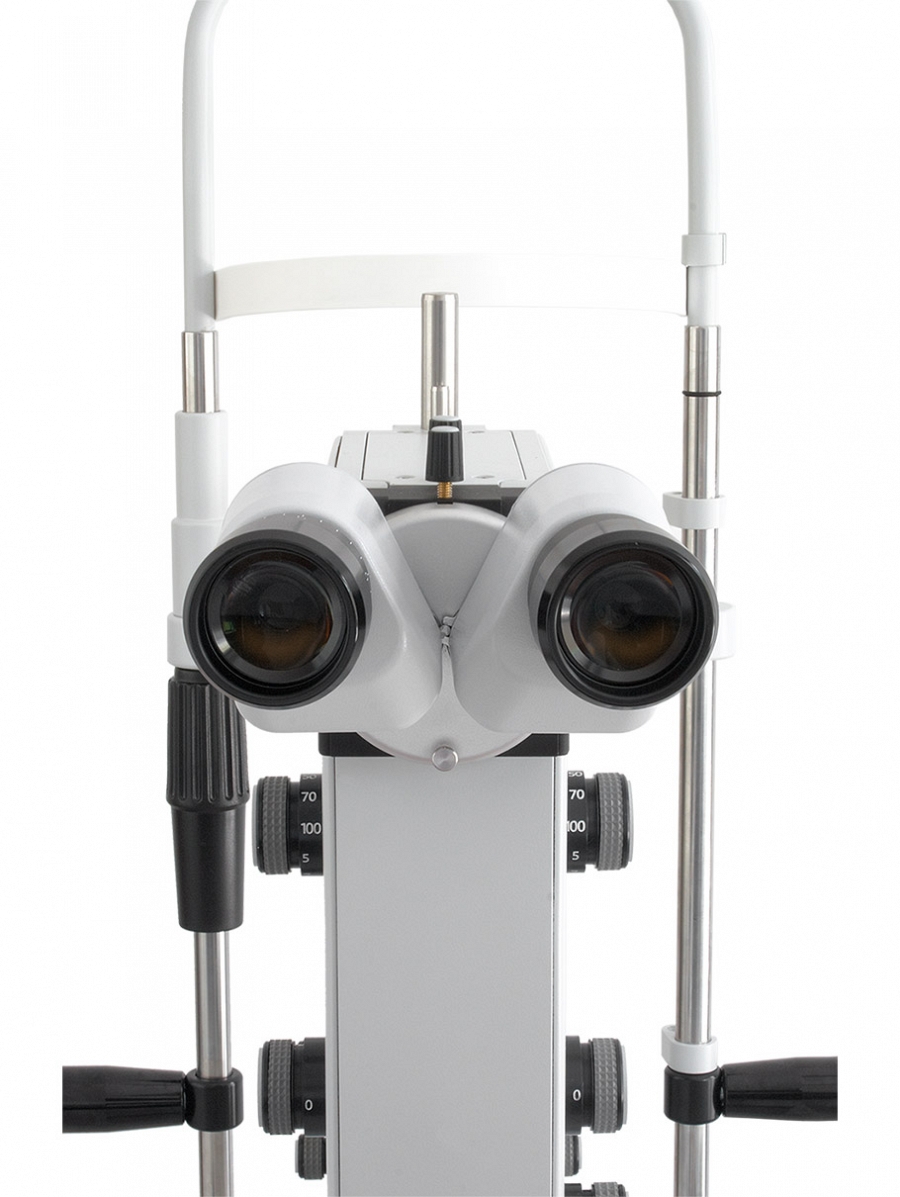

E-SLITLIGHT™
HIGH POWER LED ILLUMINATION SYSTEM
Tired of replacing slit lamp bulb? Want to have a brighter light? The e-SlitLight™ LED slit lamp offers thousands of hours of bright white light originating from the solid state LED light source. The LED illumination enhances color, detail and contrast and therefore significantly improves imaging. Additionally, its minimal heat emission makes the treatment comfortable even for dry eye patients.

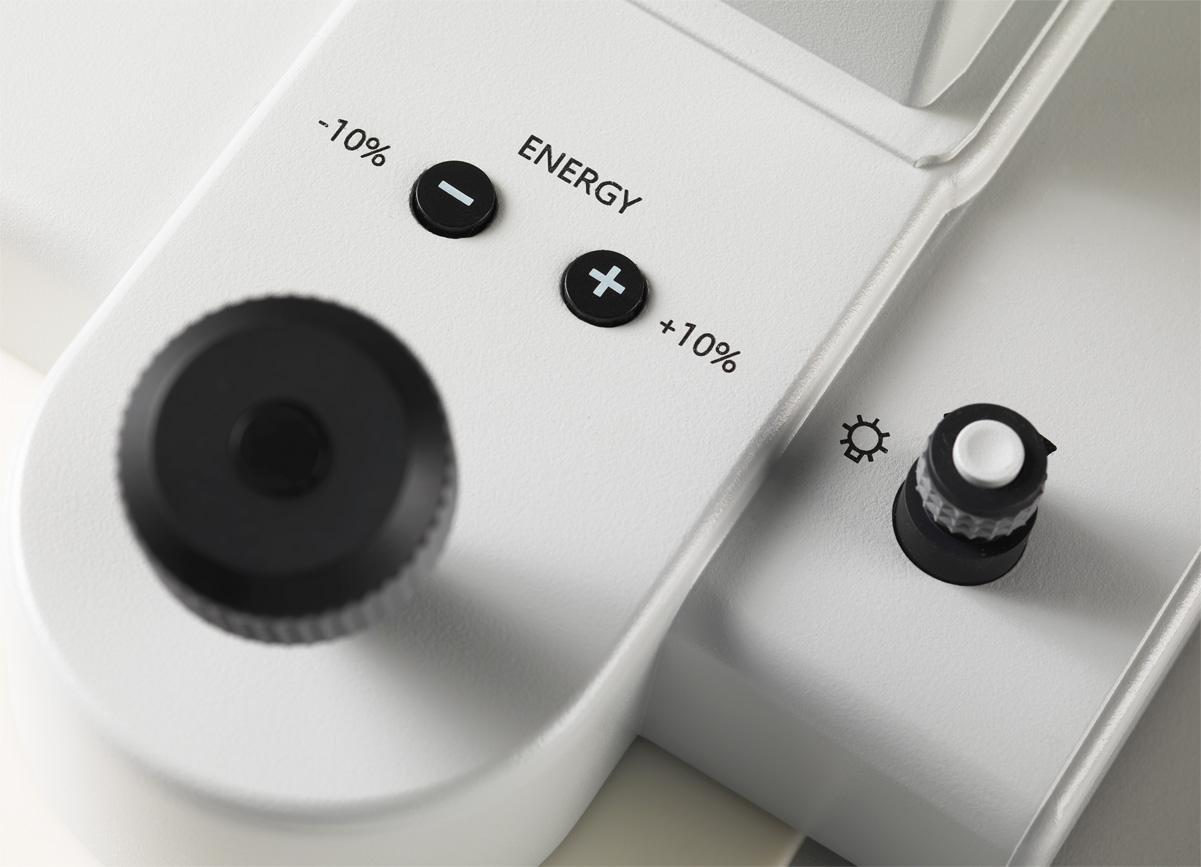

FES™ – FINE ENERGY SETTING
FOR UNMATCHED PRECISION
Advanced technical solutions and sophisticated electronics incorporated into the OptoYag M allow for a precise adjustment of energy in order to match the specific needs of the therapy or the patient. Fine energy setting buttons are conveniently located just next to a joystick, offering a physician easy and accurate adaptation of energy to the patient’s eye response. This means the physician has 30 energy levels to choose from – unique feature making OptoYag M a top class in photodisruption.
PPS™ – PULSE TO PULSE STABILITY
FOR ADVANCED SAFETY
Optotek has spent extra time and effort to ensure highest reliability and safety of the system. The OptoYAG M incorporates a PPS™ technology for delivering stable output energy far exceeding current industry standards. Enhanced accuracy and stability of energy provide the highest degree of safety and assure effective and efficient eye treatments.
TREATMENT AT 3 HZ
FOR HIGHER PERFORMANCE
The OptoYag M with newly designed laser cavity and optimized system configuration features repetition rate at 3 Hz. Faster treatment shifts physician’s productivity and patient’s comfort to a completely new level.

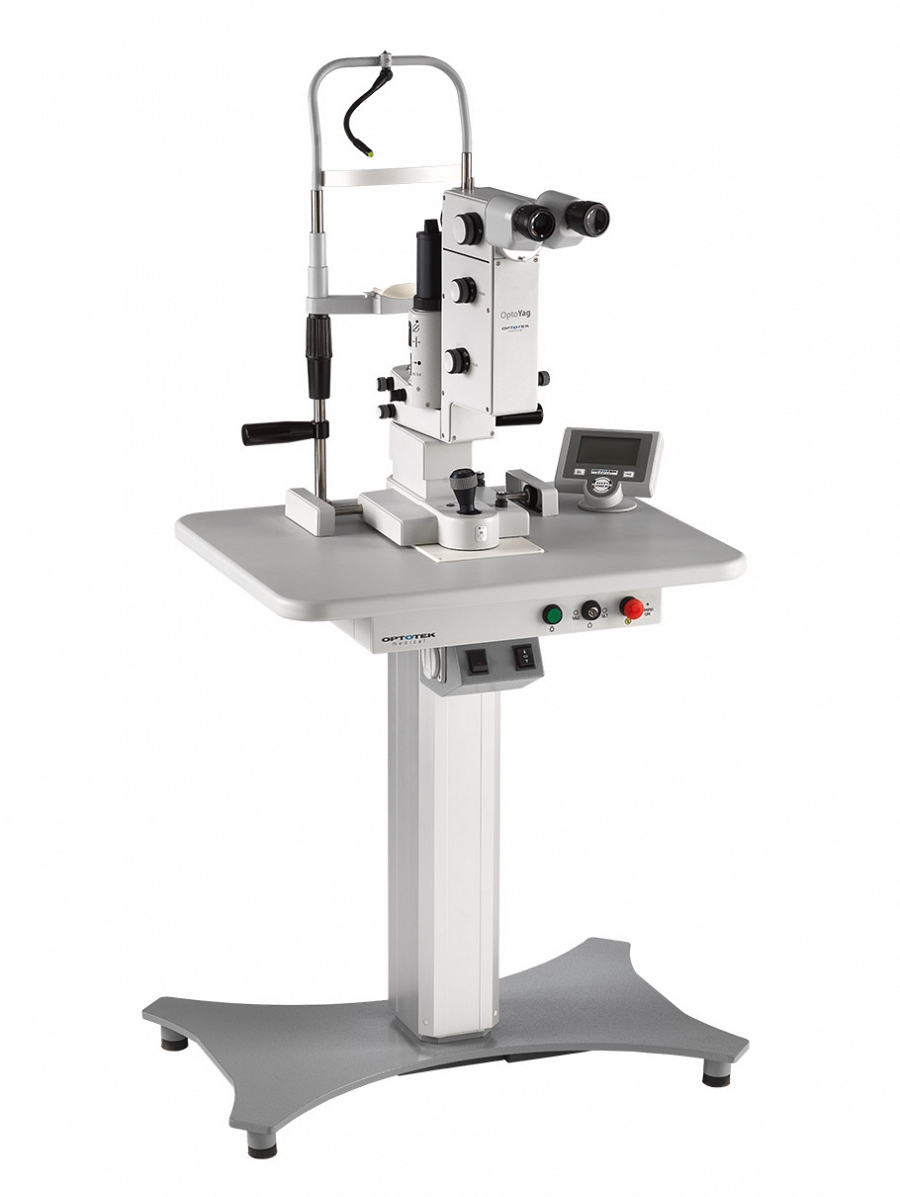

EASY-TO-MOVE SYSTEM
Convenient portable design allows ophthalmologists to change location with ease. Having electronics box underneath the table, the system can be moved freely to another worktop and therefore instantly ready for use.
MECHANICAL PRECISION AND OPTICAL QUALITY
OptoYag is made with special care. High quality optical and mechanical components are made in-house or in close cooperation with suppliers within the EU.
| Laser Source | Q-switched Nd:YAG |
| Wavelength | 1064 nm |
| Energy | 0,5 to 10 mJ per pulse in 30 steps |
| Spot Size | < 10 μm |
| Cone Angle | 16° |
| Offset | Selectable: 150μm anterior; 0; 150, 300 μm posterior |
| Pulse Rate | Up to 3 Hz |
| Burst Mode | 1, 2 and 3 pulses |
| Pulse Duration | 4 ns (typical) |
| Aiming Beam | Red dual diode; 650 nm; continuously adjustable intensity(635, 670 nm optionally) |
| Laser Trigger | Joystick (footswitch optionally) |
| Cooling System | Air convection |
| Type | e-SlitLight™ |
| Illumination Source | White LED |
| Magnification | 10x, 16x, 25x (6x, 10x, 16x, 25x, 40x optionally) |
| Type | Central mounted |
| Dimensions | 600 x 480 mm |
| YAG Laser Dimensions | 125 x 257 x 68 mm |
| Total System Height | 650 mm |
| Total Net Weight | 21 kg |
| Power Supply | 100 – 240 V, 50 – 60 Hz, 1,1 A MAX |
| Optional Accessories | Motorized lifting mechanism, Footswitch, Elbow support,,Beam splitter with co-observation tube, Warning light,,Magnification changer (5x) |
Key features
For the highest standards, all laser components are manufactured in Optotek Did you know that most companies that manufacture YAG / SLT cavity give the production of them to third-party manufacturers? We at Optotek have the technology, technical expertise and experts to manufacture YAG / SLT laser technology solely by ourself and with that we are setting higher standards to our products.
